EXTRUDE HONE 流體拋光機機型介紹,Abrasive Flow Machine











































磨料冷卻裝置

讓磨料不會因長期加工所產生的熱造成磨料熱軟,影響研磨的切削性。

標準附屬:

觸控式瑩幕

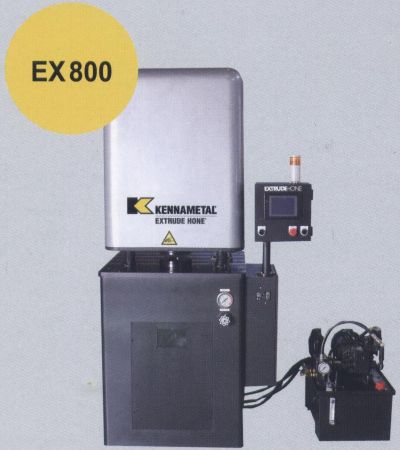

  (location) EX 800 EX 800L EX 1000 EX 1080
Machine (Main unit) :
   Height (stroke up) A 2.323 mm 2.323 mm 2.454 mm 2.454 mm
   Height (stroke down) A 2.073 mm 2.073 mm 2.054 mm 2.054 mm
   Width (machine only) B 770 mm 770 mm 1,100 mm 1,100 mm
   Width (with controller) C 1,085 mm 1,085 mm 1,586 mm 1,586 mm
   Depth D 770 mm 770 mm 950 mm 950 mm
   Table height  E 990 mm 990 mm 990 mm 990 mm
   Weight   650 kg 650 kg 1,400 kg 1,400 kg
Clamp system:
   Clamp system interval F 500 mm 500 mm 620 mm 620 mm
   Clamp flange outside diameter G 180 φ 180 φ 250 φ 250 φ
   Clamp output   11 ton 11 ton 25 ton 25 ton
Media system:
   Media cylinder diameter H 80 φ 100 φ 100 φ 80 φ / 100 φ
   Media stroke length I 200 mm 200 mm 250 mm 250 mm
   Media capacity   1,120 cc 1,640 cc 2,080 cc 1300 cc /
2,080 cc (*1)
   Media pressure range   0.8-14.0 Mpa 0.8-9.0 Mpa 0.8-14.0 Mpa 1.4-19.0 Mpa
   Media flow rate (~MAX)   ~8.0 L /min ~12.0 L /min ~19.0 L /min ~12.0 L /min
Hydraulic Unit:
   Height X 570 mm 570 mm 840 mm 840 mm
   Width Y 462 mm 462 mm 510 mm 500 mm
   Depth Z 600 mm 600 mm 955 mm 1,105 mm
   Weight (including oil)   100 kg 100 kg 160 kg 160 kg
   Maximum pressure   14.0 Mpa 14.0 Mpa 14.0 Mpa 14.0 Mpa
   Pump flow rate   8.0 L/min. 8.0 L/min. 19.0 L/min. 19.0 L/min.
   Tank capacity   40.0 L 40.0 L 55.0 L 55.0 L
Electricity:
   Electric power   2.2KW 4P 2.2KW 4P 3.7KW 4P 3.7KW 4P
   Power supply   AC200-440V, 50/60Hz, 3/4 phases as selectable


  (location) EX 1500 EX 2150 EX 2200
Machine (Main unit) :
   Height (stroke up) A 2.454 mm 2.930 mm 2.930 mm
   Height (stroke down) A 2.054 mm 2.430 mm 2.430 mm
   Width (machine only) B 1,100 mm 1,200 mm 1,200 mm
   Width (with controller) C 1,586 mm 1,700 mm 1,700 mm
   Depth D 950 mm 1,050 mm 1,050 mm
   Table height  E 990 mm 1,200 mm 1,200 mm
   Weight   1,400 kg 1,700 kg 1,700 kg
Clamp system:
   Clamp system interval F 620 mm 740 mm 740 mm
   Clamp flange outside diameter G 250 φ 310 φ 310 φ
   Clamp output   25 ton 40 ton 40 ton
Media system:
   Media cylinder diameter H 150 φ 150 φ 200 φ
   Media stroke length I 250 mm 300 mm 300 mm
   Media capacity   4,950 cc 5,300 cc 9,425 cc
   Media pressure range   0.4-5.6 Mpa 1.0-14.0 Mpa 0.6-7.8 Mpa
   Media flow rate (~MAX)   ~43.0 L /min ~19.0 L /min ~30.0 L /min
Hydraulic Unit:
   Height X 840 mm 845 mm 845 mm
   Width Y 500 mm 510 mm 510 mm
   Depth Z 1,105 mm 1,060 mm 1,060 mm
   Weight (including oil)   160 kg 210 kg 210 kg
   Maximum pressure   14.0 Mpa 14.0 Mpa 14.0 Mpa
   Pump flow rate   19.0 L/min. 19.0 L/min. 19.0 L/min.
   Tank capacity   55.0 L 78.0 L(*2) 78.0 L(*2)
Electricity:
   Electric power   3.7KW 4P 7.5KW 4P 7.5KW 4P
   Power supply   AC200-440V, 50/60Hz, 3/4 phases as selectable
